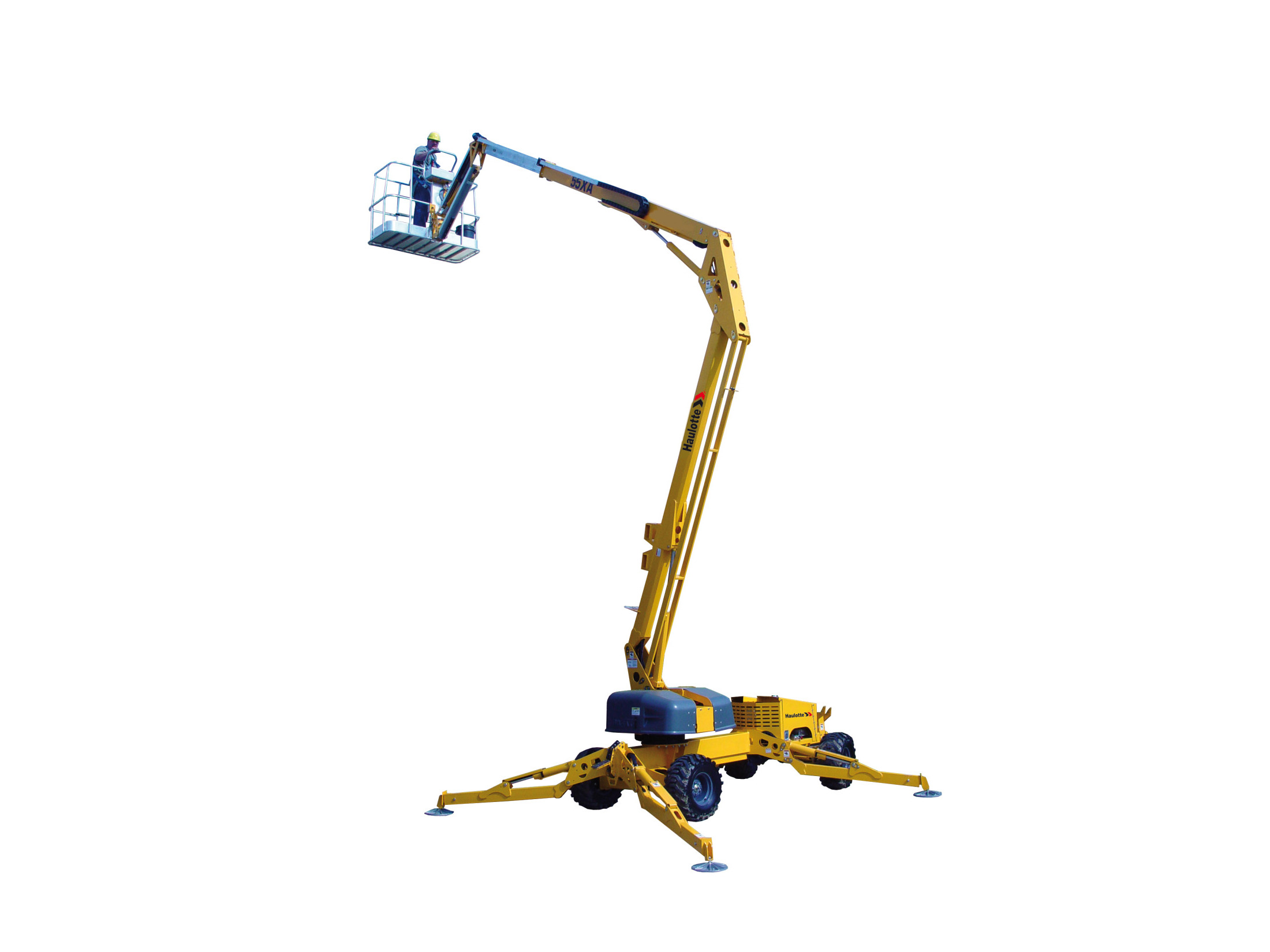

Articulating Lift, 4X4 55′ 55XA

4 Hours Daily Weekly
$400.00 $400.00 $1,200.00

One of the most versatile machines in the industry: these lightweight self-propelled lifts have a working height of 61 feet and low ground pressure for sensitive surfaces such as landscaping, designed concrete and interior uses. Hydraulic outriggers that set-up in less than 30 seconds remove the need of heavy counterweights

SKU: 17537 Category:

Additional information

Working Height

61 ft 3 in
Raised Platform Height

55 ft 3 in
Horizontal Outreach (from centreline)

33 ft 5 in
Horizontal Outreach (from edge of footpad)

27 ft 4 in
Up and Over Height

23 ft 1 in
Capacity (Overall)

500 lbs
Wheelbase

121 in
Ground Clearance

10 in
Platform Width (Inside Dimension)

30 in
Platform Length (Inside Dimension)

60 in
Outrigger Footprint

13 ft 11 in x 12 ft 9 in
Turntable Rotation

350° non-continuous
Jib Length

4 ft 3 in
Jib Vertical Motion

150° (+70 / -80)
Drive Speed (Stowed)

7.6 km/h
Gradeability

45%
Leveling Capability

12.5°
Turning Radius (Inside)

136 in (2WS), 80 in (4WS)
Power Source

DC Electric, Gasoline
